ALM-203E

ALM-203E; Alinco Inc.; Osaka (ID = 1102695) Amat TRX

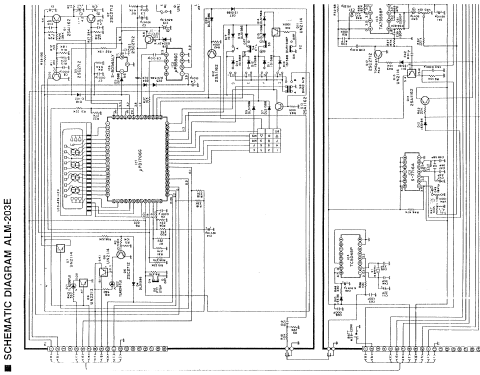

ALM-203E; Alinco Inc.; Osaka (ID = 1102696) Amat TRX
Use red slider bar for more.
ALM-203E; Alinco Inc.; Osaka (ID = 1102695) Amat TRX
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Japan
Manufacturer / Brand:  Alinco Inc.; Osaka
Year: 1986 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 10700/455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 9,6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: ALM-203E - Alinco Inc.; Osaka
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 69 x 260 x 37 mm / 2.7 x 10.2 x 1.5 inch
Notes Alinco VHF-Handfunkgerät ALM-203E.
Frequenzbereich 144–145,995 MHz im 12,5-kHz-Raster; Betriebsart: F3E (FM); Pout: 3 bzw. 0,3 W.
Zehn Speicher; Anschlussmöglichkeit für ext. Mikrofon und Lautsprecher; Antennenanschluss: BNC.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 659.00 DM
Mentioned in Beam Amateurfunk-Geräteführer '90

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
