DJ-X2000

DJ-X2000; Alinco Inc.; Osaka (ID = 824296) Amateur-R
Use red slider bar for more.
DJ-X2000; Alinco Inc.; Osaka (ID = 824296) Amateur-R

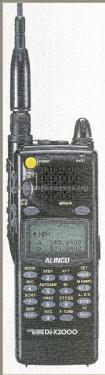

Alinco Inc.; Osaka: DJ-X2000 [Amateur-R] ID = 824296 173x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model DJ-X2000, Alinco Inc.; Osaka:
FA 5/02

Country:  Japan
Manufacturer / Brand:  Alinco Inc.; Osaka
Year: 2001 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 7,4 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: DJ-X2000 - Alinco Inc.; Osaka
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 57 x 150 x 28 mm / 2.2 x 5.9 x 1.1 inch
Notes Alinco Breitband-Allmode-Empfänger DJ-X2000
Frequenzbereich (E-Version): 0,1...2150 MHz; Betriebsarten: WFM, NFM, AM, CW, SSB.
Eingebauter Stereodecoder, Stereoempfang über Kopfhörer möglich; integrierter Digitalrecorder für 160 s Aufzeichnungsdauer, Mikrofon vorhanden; spezielle Antenne für Rundfunkempfang auf MW und KW eingebaut; als Frequenzzähler nutzbar; Descrambler zur Deinvertierung verschleierter Sprachsignale integriert; CTCSS-Decoder; Transweeper-Funktion zur Entdeckung von "Wanzen"; Betriebsspannung: 7,4 V (interner Li-Ion-Akku, 5,5...7,5 V (Batterien), 12...16 V bei externer Speisung.
Net weight (2.2 lb = 1 kg) 0.320 kg / 0 lb 11.3 oz (0.705 lb)
Price in first year of sale 686.00 EUR
Mentioned in FA 5/02

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
