DJ-X7

DJ-X7; Alinco Inc.; Osaka (ID = 824294) Amateur-R
Use red slider bar for more.
DJ-X7; Alinco Inc.; Osaka (ID = 824294) Amateur-R

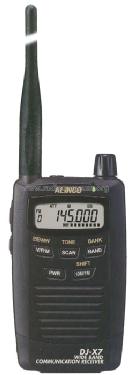

Alinco Inc.; Osaka: DJ-X7 [Amateur-R] ID = 824294 243x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model DJ-X7, Alinco Inc.; Osaka:
FA 9/05

Country:  Japan
Manufacturer / Brand:  Alinco Inc.; Osaka
Year: 2005 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 243950/39150/450 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 3,7 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: DJ-X7 - Alinco Inc.; Osaka
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 58 x 96 x 15 mm / 2.3 x 3.8 x 0.6 inch
Notes Alinco Miniatur-Breitbandempfänger mit Sprach-Inverter-Decodier-Funktion DJ-X7.
Frequenzbereich (E-Version): 0,1...1299,995 MHz; Betriebsarten: NFM, AM, WFM.
1000 normale Speicher sowie 50 Speicherpaare für den PMS-Suchlauf, 10 für Prioritäts- und 100 für Skip-Kanäle; Split- und Shift-Funktion; CTCSS-Decoder und CTCSS-Tone-Suchlauf; AM-Empfang mit eingebautem Ferritstab, FM-Empfang mit dem Ohrhörerkabel als Antenne möglich; SMA-Antennenanschluss 50 Ω; APO-Funktion; Betriebsspannung: 3,7 V Li-Ionen-Akku oder 3,7...6 V extern.
Net weight (2.2 lb = 1 kg) 0.103 kg / 0 lb 3.6 oz (0.227 lb)
Price in first year of sale 197.00 EUR
Mentioned in FA 9/05

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
