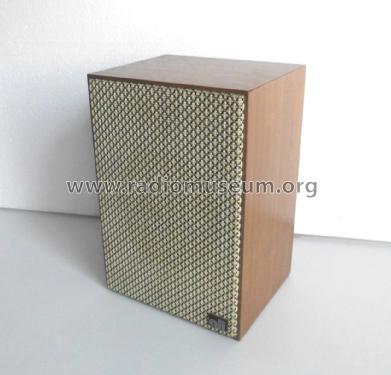

ALL B 20

All-Akustik, Vertriebs-GmbH & Co. KG; Hannover

Data
Forum
Pictures
Collections

  • Year
  • 1973/1974 ?
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 308510
    • Brand: Quadral

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
  • Power out
  • 10 W (20 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: ALL B 20 - All-Akustik, Vertriebs-GmbH &
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 155 x 225 x 130 mm / 6.1 x 8.9 x 5.1 inch
  • Notes

  • ALL - Akustik Lautsprecherbox B 20

    1 Weg Box mit Breitbandchassis  Ø 125 mm, Nennbelastbarkeit 10 Watt, Musikbelastbarkeit 20 Watt, Frequenzbereich 65 - 16.000 Hz, Impedanz angegeben 4 - 8 Ω (Chassis gestempelt 4 Ω),  festes Anschlußkabel (2,6 m) mit DIN-Stecker.



  • Author
  • Model page created by Michael Lienhop. See "Data change" for further contributors.
