- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 31991

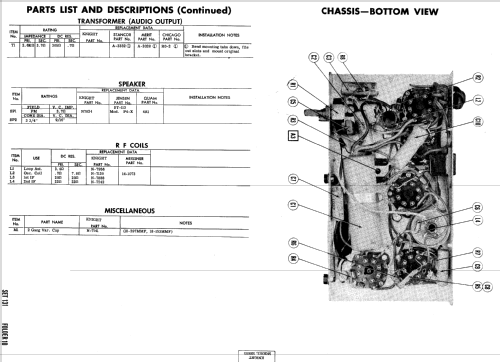

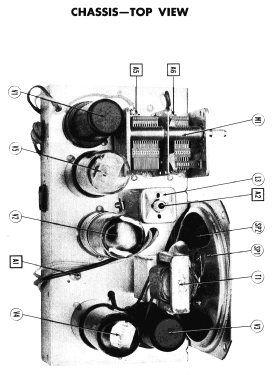

Picture from service manual.
Sams photofact set 131 folder 10 date 5-51.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5H-605 - Allied Radio Corp. Knight,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-
Knight model 5H605 is an AC operated superheterodyne receiver with electric clock. Same model available in ivory: Model 5H-606.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 131, Folder 10, Date 5-1951)
- Literature/Schematics (2)
- Table Top Radios Vol. 1 Stein 98 (page 95.)
- Other Models
-
Here you find 1359 models, 1026 with images and 682 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
