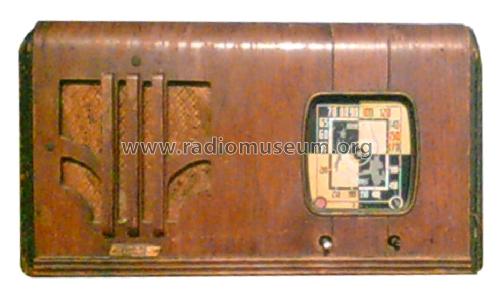

Knight 4 A10882 (A10882B)

Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1941/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 199629

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Storage and/or dry batteries / 1.4 & 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Knight 4 A10882 - Allied Radio Corp. Knight,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 17.5 x 9.625 x 12.5 inch / 445 x 244 x 318 mm
  • Notes

  • The Allied Radio Knight 4 is a battery operated 4 tube BC band receiver.  The BC band frequency tuning range is 540-1730kHz.  The cabinet is wood covered with one piece stiped veneer and features darker toned sides and bottom edge.  The "A10882" originally sold without the "AB" battery pack for $15.85. The "A10882B" originally sold with a 1000 hour Ray-O-Vac "AB" battery pack for $19.30.



  • Price in first year of sale
  • 15.85 USD
  • Mentioned in
  • 1940 Allied Radio Catalog (Page 27)

 Collections | Museums | Literature

Collections

The model Knight 4 A10882 (A10882B) is part of the collections of the following members.
