• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149139

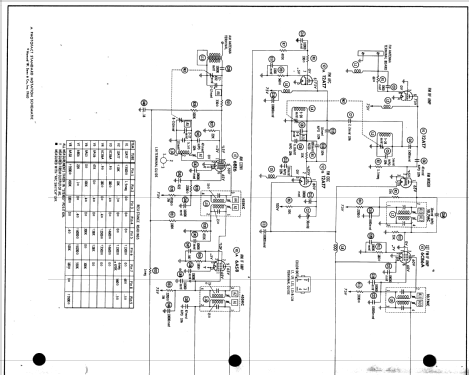

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 12AT7 12AT7 6CB6A 6CB6A 6AU6 6AL5 6BE6 6AS8

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: KN-135 92SU431 - Allied Radio Corp. Knight,

• Shape
• Tablemodel, with any shape - general.

• Notes
• AC operated AM - FM tuner.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 499 folder 9 date 9-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
