- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 356916

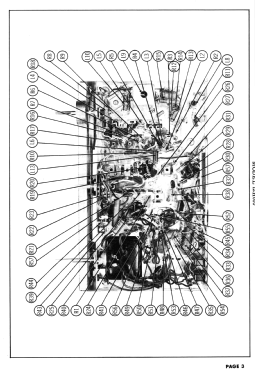

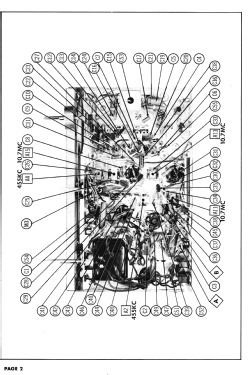

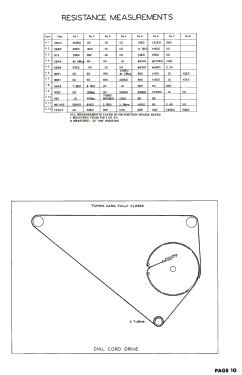

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Knight 12H610 - Allied Radio Corp. Knight,
- Shape
- Chassis only or for «building in»
- Notes
-
Knight model 12H610 is an AC operated AM-FM superheterodyne tuner for custom installation.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 176, folder 5, dated 8-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
