• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1960 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 353267

• Number of Tubes
• 3

• Valves / Tubes
• 12AV6 50C5 35W4

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Metal case

• from Radiomuseum.org

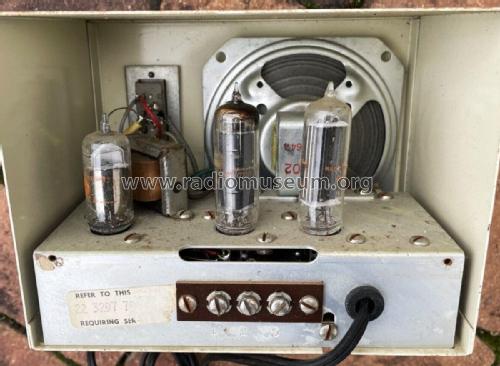

• Model: Knight 2-Way Intercom 83 Y 297 - Allied Radio Corp. Knight,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 6.5 x 4.75 x 4.375 inch / 165 x 121 x 111 mm

• Notes

• Intercom with Master unit and up to 3 Remote units; only Master needs power.

• Price in first year of sale
• 14.95 USD

• Mentioned in
• Allied Radio Catalog (Knight) (1960, page 347)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
