- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 343901

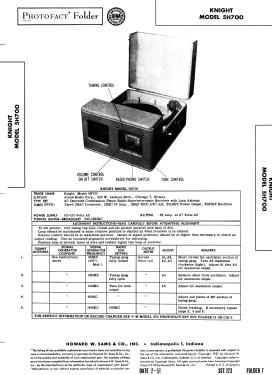

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Ø 4.5 inch = 11.4 cm
- Material
- Various materials
- from Radiomuseum.org
- Model: Knight 5H700 - Allied Radio Corp. Knight,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Knight model 5H700 is an AC operated combination phono-radio superheterodyne receiver with loop antenna.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 123 folder 7 dated 2-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
