Knight 6 B10561
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 362705

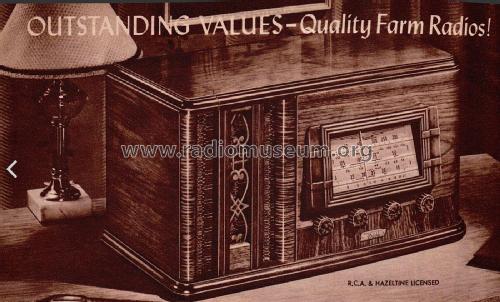

Allied Catalog 1941 Page 36
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Direct Current supply (DC) / 32 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Knight 6 B10561 - Allied Radio Corp. Knight,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 21.5 x 11 x 11 inch / 546 x 279 x 279 mm
- Notes
-
Fitted with electric eye.
television, FM and Phono Connection.
Price listed complete with tubes.
Not to be confused with the earlier Knight 7 AC Superhet B10561 Code: Chair.
- Price in first year of sale
- 26.95 USD
- Mentioned in
- -- Original prospect or advert (Allied Catalog 1941 Page 36)
- Author
- Model page created by Glen Orriss. See "Data change" for further contributors.
