Knight 83 YZ 762

Knight 83 YZ 762; Allied Radio Corp. (ID = 1326440) Ampl/Mixer Knight 83 YZ 762; Allied Radio Corp. (ID = 1326443) Ampl/Mixer
Knight 83 YZ 762; Allied Radio Corp. (ID = 1326444) Ampl/Mixer Knight 83 YZ 762; Allied Radio Corp. (ID = 1326446) Ampl/Mixer
Knight 83 YZ 762; Allied Radio Corp. (ID = 2638801) Ampl/Mixer Knight 83 YZ 762; Allied Radio Corp. (ID = 2638802) Ampl/Mixer
Use red slider bar for more.

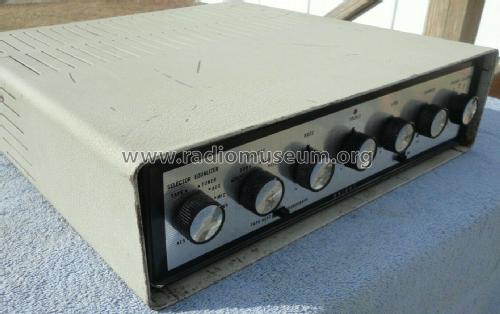

Knight 83 YZ 762; Allied Radio Corp. (ID = 1326440) Ampl/Mixer

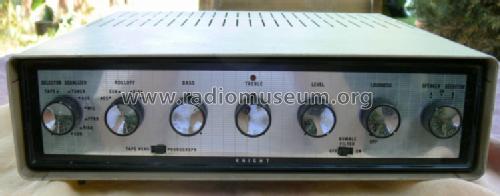

Allied Radio Corp.: Knight 83 YZ 762 [Ampl/Mixer] ID = 1326440 752x296
Select picture or schematic to display from thumbnails on the right and click for download.
For model Knight 83 YZ 762, Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL):
aus ebay, #160812324302, Verkäufer early_arrow

Country:  United States of America (USA)
Manufacturer / Brand:  Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
Year: 1958 ? Category: Audio Amplifier or -mixer
Valves / Tubes 8: 12AY7 12AU7 12AU7 12AU7 12AU7 6L6 6L6 5U4
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: Knight 83 YZ 762 - Allied Radio Corp. Knight,
Material Metal case
Shape Book-shelf unit.
Notes Integrated amplifier, mono, with several phono equalization settings.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
