• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1948 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 194112

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6SJ7 6SJ7 6SA7 6SA7 6SC7 6L6 6L6 6X5GT 6X5GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 117 / 6 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Knight 93-155 [battery operated] - Allied Radio Corp. Knight,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Push-pull af amplifier; vibrator for +B.

• Literature/Schematics (4)

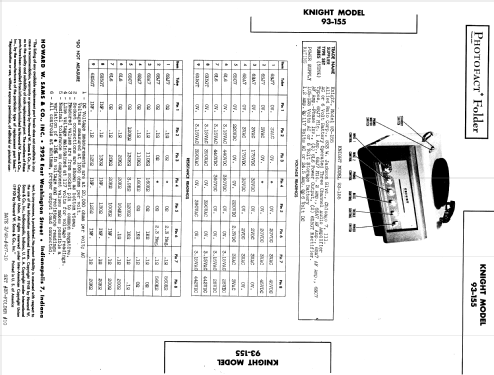

• Photofact Folder, Howard W. SAMS (Set 37, Date 3/48, Folder 487-10)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
