Knight 99RZ176
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1957 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 317587

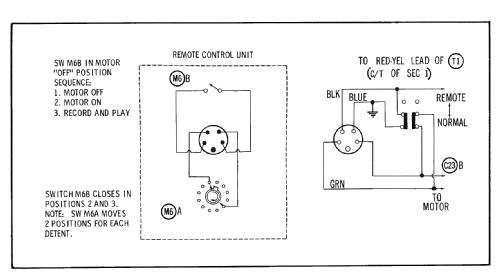

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Knight 99RZ176 - Allied Radio Corp. Knight,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Knight model 99RZ176 uses pushbutton control.Two tracks of material can be recorded and played back on standard widt recording tape.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 380 Folder 1 Production Changes Bulletin 194 dated 12-57)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 366 Folder 5 dated 8-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
