• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 161751

• Number of Tubes
• 6

• Valves / Tubes
• 12SA7GT 12SK7GT 12SQ7GT 12SQ7GT 35L6GT 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110-120 - with adaptor 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.5 inch = 14 cm

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Knight D-108 Headliner - Allied Radio Corp. Knight,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10.25 x 7.25 x 5.5 inch / 260 x 184 x 140 mm

• Notes
• Built-in loop antenna. Frequency ranges 535-1660kHz, 5.7-18.3MHZ. Ivory coloured cabinet.

• Price in first year of sale
• 13.00 $

• Literature/Schematics (1)

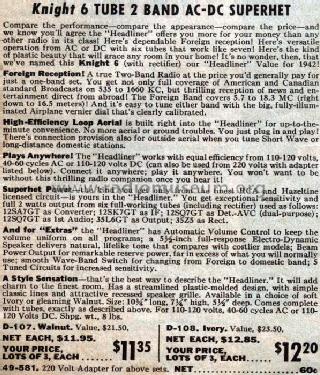

• Allied Radio Catalog (Knight) (1942 p. 7)

• Author
• Model page created by Edmund H. Ramm. See "Data change" for further contributors.
