• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162342

• Number of Tubes
• 5

• Valves / Tubes
• 12A8GT 12K7GT 12Q7GT 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Knight D-170 Phono-Radio [AC only] - Allied Radio Corp. Knight,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 14.63 x 10 x 11.5 inch / 372 x 254 x 292 mm

• Notes
• Built-in loop antenna and turntable. Frequency range: 535-1720kHz.

• Price in first year of sale
• 23.00 $

• Literature/Schematics (1)

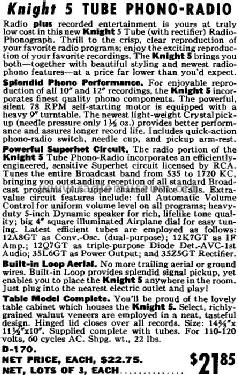

• Allied Radio Catalog (Knight) (1942 p. 26)

• Author
• Model page created by Edmund H. Ramm. See "Data change" for further contributors.
