• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162133

• Number of Tubes
• 9

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6U5 6SQ7 6K6GT 6K6GT 80

• Main principle
• Superhet with RF-stage; 3 AF stage(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details

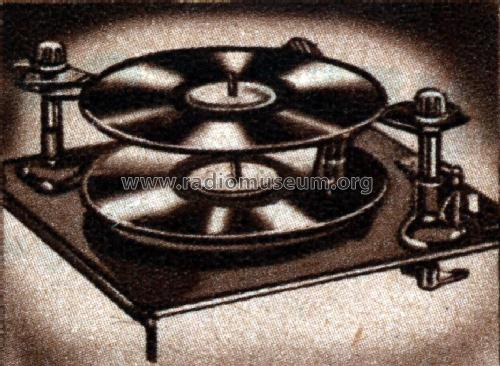

• Recording phonogr.-Disc Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

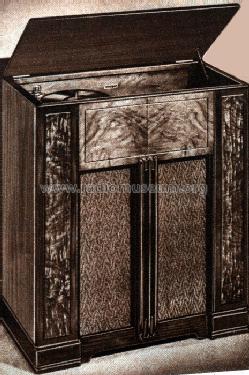

• Model: Knight D-190 Console Autom. Radio-Recorder [9 tubes] - Allied Radio Corp. Knight,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 31 x 36 x 17 inch / 787 x 914 x 432 mm

• Notes
• Built-in loop antenna & recorder. Frequency ranges 540-1650kHz, 1.7-6 & 5.6-19MHz.

• Price in first year of sale
• 95.00 $

• Literature/Schematics (1)

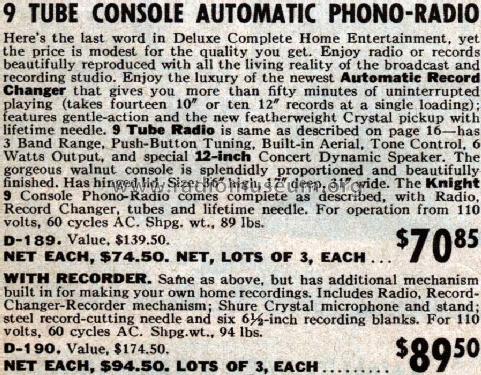

• Allied Radio Catalog (Knight) (1942 p. 17)

• Author
• Model page created by Edmund H. Ramm. See "Data change" for further contributors.
