Knight KN-200 Ch= 92SZ405
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177277

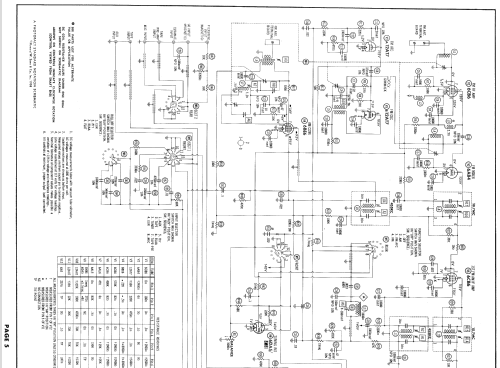

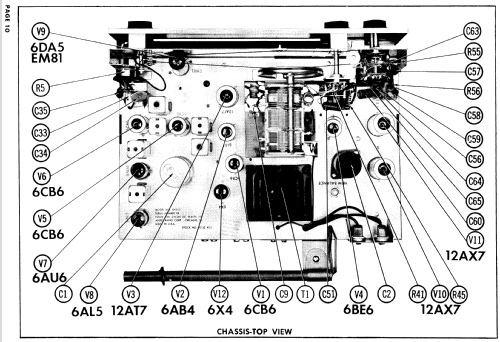

Sams Photofact Folders reference picture.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Knight KN-200 Ch= 92SZ405 - Allied Radio Corp. Knight,
- Shape
- Tablemodel, low profile (big size).
- Notes
- The Allied Radio Model Knight KN-200 is an AC operated 12 tube FM-AM Tuner.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-58, Set 411, Folder 10)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
