• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1958

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 172132

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AX7 12AX7 12AX7 12AX7 12AU7

• Number of Transistors

• Semiconductors
• Selenium-Rectifier Selenium-Rectifier

• Main principle
• Audio-Amplification; 5 AF stage(s)

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

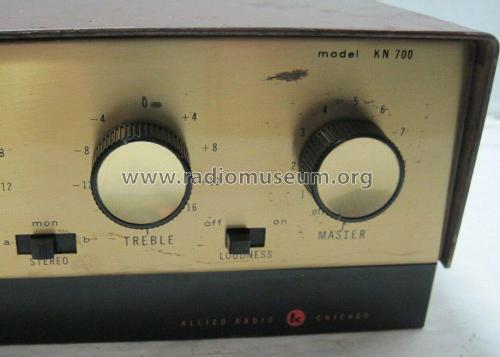

• Model: Knight stereo preamp KN-700 Ch= 92SX406 - Allied Radio Corp. Knight,

• Shape
• Book-shelf unit.

• Notes

• The Allied Radio model Knight KN-700 is a Mono/Stereo Preamplifier, Mono for Phono, Tuner and Mic, Stereo only for Tape and Aux.
  Phono equalization EUR / ffrr / RIAA.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 11-58, Set 422, Folder 10)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
