Knight Sound Products 30S

Knight Sound Products 30S; Allied Radio Corp. (ID = 2639398) Ampl/Mixer
Knight Sound Products 30S; Allied Radio Corp. (ID = 2638848) Ampl/Mixer Knight Sound Products 30S; Allied Radio Corp. (ID = 2638849) Ampl/Mixer
Knight Sound Products 30S; Allied Radio Corp. (ID = 2639392) Ampl/Mixer Knight Sound Products 30S; Allied Radio Corp. (ID = 2639393) Ampl/Mixer
Knight Sound Products 30S; Allied Radio Corp. (ID = 2639394) Ampl/Mixer Knight Sound Products 30S; Allied Radio Corp. (ID = 2639396) Ampl/Mixer
Use red slider bar for more.
Knight Sound Products 30S; Allied Radio Corp. (ID = 2638848) Ampl/Mixer
Allied Radio Corp.: Knight Sound Products 30S [Ampl/Mixer] ID = 2638848 1400x921
Select picture or schematic to display from thumbnails on the right and click for download.
For model Knight Sound Products 30S, Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL):
aus ebay, #154274112462, Verkäufer otsonline

Country:  United States of America (USA)
Manufacturer / Brand:  Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
Year: 1945 ?? Category: Audio Amplifier or -mixer

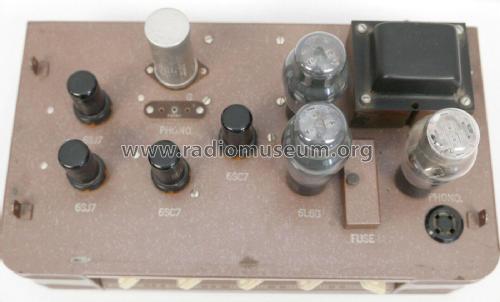

Valves / Tubes 7: 6SJ7 6SJ7 6SC7 6SC7 6L6G 6L6G 5U4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 105-117; 118-125 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: Knight Sound Products 30S - Allied Radio Corp. Knight,
Material Metal case
Shape Tablemodel, low profile (big size).
Notes

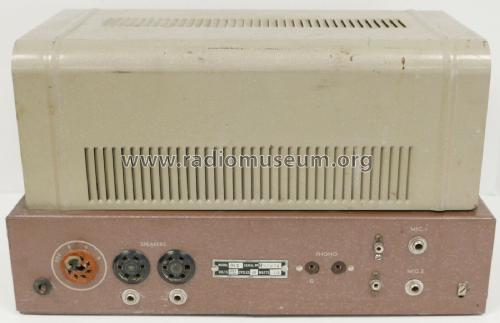

PA amplfier. Inputs: 2x Micro + Phono.

Literature/Schematics (1) -- Schematic

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
