Alpage Stereo Cassette Deck AL-65

Alpage Stereo Cassette Deck AL-65; Alpine Electronics, (ID = 1783478) R-Player Alpage Stereo Cassette Deck AL-65; Alpine Electronics, (ID = 1783479) R-Player
Alpage Stereo Cassette Deck AL-65; Alpine Electronics, (ID = 1783480) R-Player Alpage Stereo Cassette Deck AL-65; Alpine Electronics, (ID = 1783481) R-Player
Use red slider bar for more.
Alpage Stereo Cassette Deck AL-65; Alpine Electronics, (ID = 1783478) R-Player
Alpine Electronics,: Alpage Stereo Cassette Deck AL-65 [R-Player] ID = 1783478 1400x1391
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alpage Stereo Cassette Deck AL-65, Alpine Electronics, Tokyo:

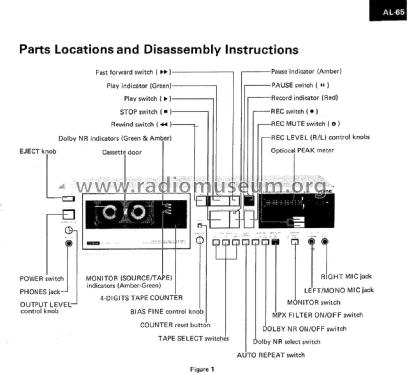

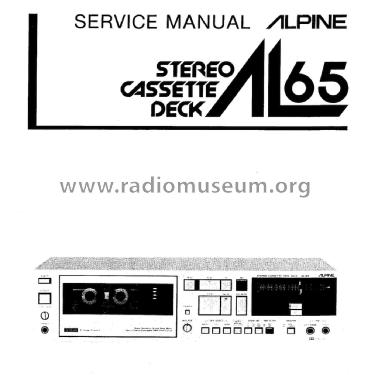

Service Manual

Country:  Japan
Manufacturer / Brand:  Alpine Electronics, Tokyo
Brand

Alpage
Year: 1986 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 52:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Alpage Stereo Cassette Deck AL-65 - Alpine Electronics, Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 106 x 254 mm / 17.1 x 4.2 x 10 inch
Notes

Alpine Frontloading 2-Head Stereo Cassette Tape Deck Model Alpage AL-65.
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Tape Type: type I, CrO2, Metal
Noise Reduction: Dolby B, C
Frequency Response: 31.5 to 19000Hz (Metal tape)
Signal to Noise Ratio: 64dB (Dolby C)
Wow and Flutter: 0.05%
Total Harmonic Distortion: 3%
Input: 100mV (line), 0.3mV (mic)
Output: 0.55V (line)

Power Source:
120VAC 60Hz - For Single Voltage Model only
110/127/220/240VAC 50Hz - For Multi Voltage Model only
Power Consumption max. 30 Watts

Semiconductors:
52x Transistors, 7x IC's, 16x Diodes, 6x Zener Diodes, 1x Bridge Diode

Net weight (2.2 lb = 1 kg) 4.9 kg / 10 lb 12.7 oz (10.793 lb)
Mentioned in - - Manufacturers Literature (Service Manual)

Model page created by Franz Scharner. See "Data change" for further contributors.
