• Country
• United States of America (USA)

• Manufacturer / Brand
• Altec Lansing Corp.; Oklahoma City (OK)

• Year
• 1955 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 302796

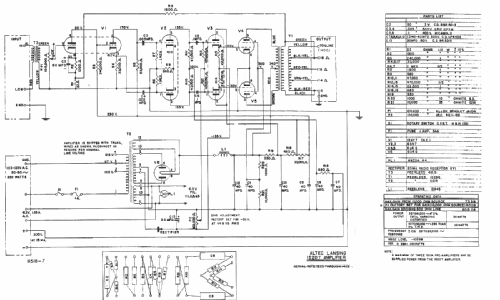

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AY7 6SN7 6SN7 6L6G 6L6G 5U4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50 - 60 Hz; 105 - 125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 35 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Bridging Amplifier 1520T - Altec Lansing Corp.; Oklahoma

• Shape
• Rack

• Dimensions (WHD)
• 19 x 10.5 x 9 inch / 483 x 267 x 229 mm

• Net weight (2.2 lb = 1 kg)
• 55 lb (55 lb 0 oz) / 24.970 kg

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Ben Ni Ho Pang Ngai. See "Data change" for further contributors.
