Power Amplifier 1569A

Power Amplifier 1569A; Altec Lansing Corp.; (ID = 1402235) Ampl/Mixer Power Amplifier 1569A; Altec Lansing Corp.; (ID = 1402236) Ampl/Mixer
Power Amplifier 1569A; Altec Lansing Corp.; (ID = 1402237) Ampl/Mixer Power Amplifier 1569A; Altec Lansing Corp.; (ID = 1988539) Ampl/Mixer

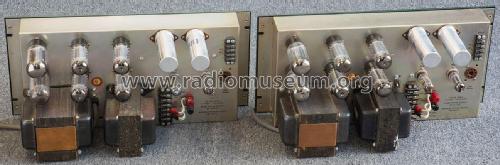

Power Amplifier 1569A; Altec Lansing Corp.; (ID = 1988540) Ampl/Mixer Power Amplifier 1569A; Altec Lansing Corp.; (ID = 1988541) Ampl/Mixer
Power Amplifier 1569A; Altec Lansing Corp.; (ID = 2086165) Ampl/Mixer Power Amplifier 1569A; Altec Lansing Corp.; (ID = 2086166) Ampl/Mixer
Power Amplifier 1569A; Altec Lansing Corp.; (ID = 2086167) Ampl/Mixer
Use red slider bar for more.
Power Amplifier 1569A; Altec Lansing Corp.; (ID = 1402235) Ampl/Mixer
Altec Lansing Corp.;: Power Amplifier 1569A [Ampl/Mixer] ID = 1402235 420x224
Select picture or schematic to display from thumbnails on the right and click for download.
For model Power Amplifier 1569A, Altec Lansing Corp.; Oklahoma City (OK):
aus ebay, #300830437735, Verkäufer ronald041

Country:  United States of America (USA)
Manufacturer / Brand:  Altec Lansing Corp.; Oklahoma City (OK)
Year: 1957 Category: Audio Amplifier or -mixer
Valves / Tubes 8: 6CG7 6CG7 6CA7 or EL34 6CA7 or EL34 6CA7 or EL34 6CA7 or EL34 5U4GB 5U4GB
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 80 W (unknown quality)
from Radiomuseum.org Model: Power Amplifier 1569A - Altec Lansing Corp.; Oklahoma
Material Metal case
Shape Rack
Dimensions (WHD) 19 x 8.75 x 8 inch / 483 x 222 x 203 mm
Notes

Mono, with two stage high-pass-filter for protection of horn loaded drivers.

Net weight (2.2 lb = 1 kg) 27.5 lb (27 lb 8 oz) / 12.485 kg

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
