Inconnu-unknown

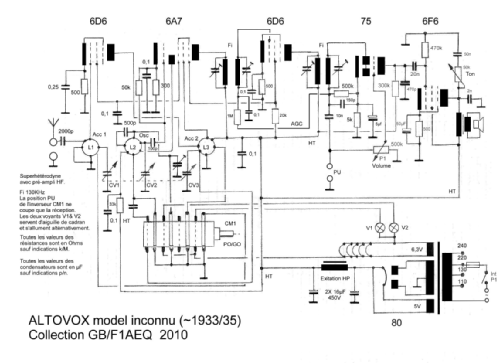

Inconnu-unknown ; Altovox; Malakoff (ID = 863543) Radio

Inconnu-unknown ; Altovox; Malakoff (ID = 863547) Radio
Inconnu-unknown ; Altovox; Malakoff (ID = 863546) Radio
Use red slider bar for more.

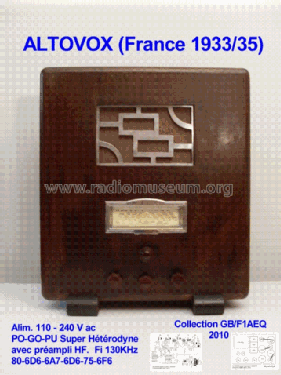

Inconnu-unknown ; Altovox; Malakoff (ID = 863546) Radio
Altovox; Malakoff: Inconnu-unknown [Radio] ID = 863546 640x853
Select picture or schematic to display from thumbnails on the right and click for download.
For model Inconnu-unknown, Altovox; Malakoff (Seine)

Country:  France
Manufacturer / Brand:  Altovox; Malakoff (Seine)
Year: 1935 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6D6 6A7 6D6 75 6F6 80
Main principle Superhet with RF-stage; ZF/IF 130 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Inconnu-unknown - Altovox; Malakoff Seine
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).

Model page created by Bernard Gilbert. See "Data change" for further contributors.



All listed radios etc. from Altovox; Malakoff (Seine)
Here you find 1 models, 1 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
