• Country
• Israel

• Manufacturer / Brand
• Amron / Amcor; Herzliya

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75007

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF80 ECL82 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

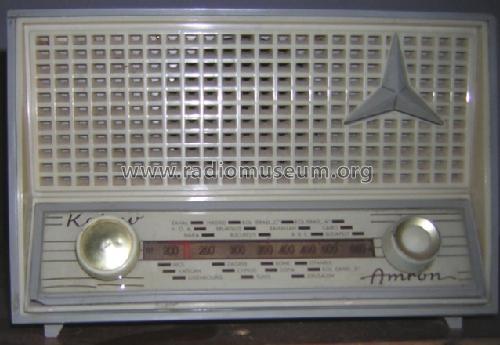

• Model: Kohav 4161 - Amron / Amcor; Herzliya

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 175 x 105 mm / 9.8 x 6.9 x 4.1 inch

• Author
• Model page created by Dieter von Loeffelholz. See "Data change" for further contributors.
