• Year
  • 1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 210453

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 230 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

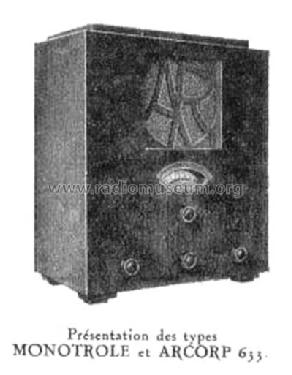

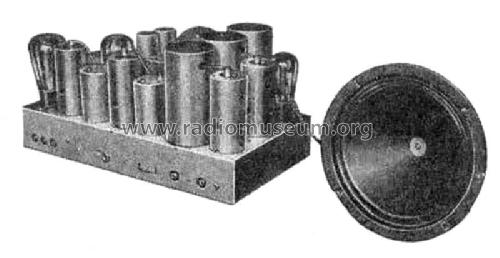

  • Model: Monotrole [modèle 1933, alternatif] - American Radio Corporation
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 440 x 530 x 260 mm / 17.3 x 20.9 x 10.2 inch
  • Notes
  • Couvre la gamme de 200 à 2000 m.

    Quatre exécutions pour secteur alternatif :

    • modèle 110 - 130 volts, 50 périodes, 2950 Fr
    • modèle 220 - 240 volts, 50 périodes, 3150 Fr
    • modèle 110 - 130 volts, 25 périodes, 3250 Fr
    • modèle 220 - 240 volts, 25 périodes, 3350 Fr
  • Net weight (2.2 lb = 1 kg)
  • 18.5 kg / 40 lb 12 oz (40.749 lb)
  • Mentioned in
  • -- Schematic
  • Literature/Schematics (2)

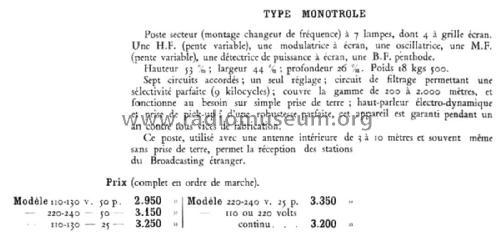

  • Au Pigeon Voyageur, Documentation générale de la Radio, 1932
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
