Combiné CL447

Combiné CL447; Amplix CGTVE; Paris (ID = 2527994) Radio
Use red slider bar for more.
Combiné CL447; Amplix CGTVE; Paris (ID = 2527994) Radio

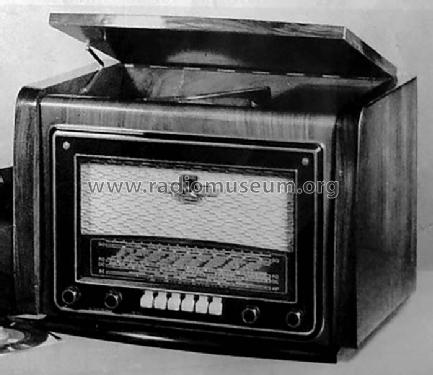

Amplix CGTVE; Paris: Combiné CL447 [Radio] ID = 2527994 700x605
Select picture or schematic to display from thumbnails on the right and click for download.
For model Combiné CL447, Amplix (CGTVE); Paris:
Dépliant Amplix

Country:  France
Manufacturer / Brand:  Amplix (CGTVE); Paris
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7:
Main principle Superhet with RF-stage
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Combiné CL447 - Amplix CGTVE; Paris
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 630 x 435 x 380 mm / 24.8 x 17.1 x 15 inch
Notes

Radio-phono combiné, équipé du châssis du CL447 : 4 gammes d'ondes dont 1 bande étalée (BE) sur 49 m. Étage HF accordée. Cadre à air antiparasite incorporé. Clavier 6 touches. Contre-réaction BF corrigée, combiné avec contrôle de tonalité. Prise pick-up et HP supplémentaire.

Tourne-disques 3 vitesses microsillon.

Coffret noyer verni.

Modèle pour 25 périodes sur demande.

Net weight (2.2 lb = 1 kg) 18.5 kg / 40 lb 12 oz (40.749 lb)
Mentioned in -- Original prospect or advert

Model page created by Mark Hippenstiel. See "Data change" for further contributors.



All listed radios etc. from Amplix (CGTVE); Paris
Here you find 138 models, 105 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
