• Country
• United States of America (USA)

• Manufacturer / Brand
• Amrad Corporation; Medford Hillside (MA)

• Year
• 1923

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 32603

• • alternative name: American Radio & Research

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UV201A UV201A UV201A UV201A

• Main principle
• TRF without regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

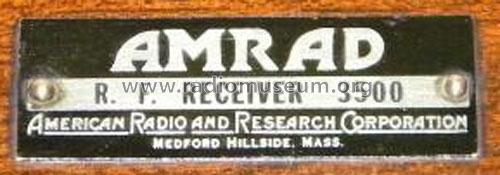

• Model: Amrad 35 3500 3475 & 2634 - Amrad Corporation; Medford

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 15 x 10 x 6.5 inch / 381 x 254 x 165 mm

• Notes

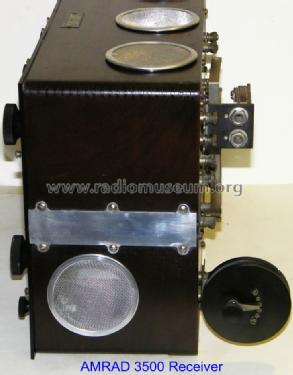

• The AMRAD 3500 RF Receiver differed from the 3500-1 by the lack of a plug in RF transformer. The 3500-1 featured a plug in Radiformer that allowed the reception of lower wavelengths. The AMRAD 3500 had a fixed RF Transformer inside of the 3475 tuner. See the model page for the 3475 Broadcast Tuner for pictures of both chassis.

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932
