• Year
  • 1929
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 32625
    • alternative name: American Radio & Research

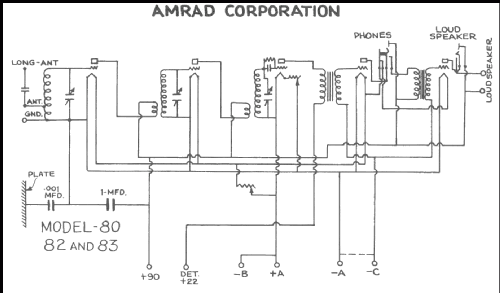

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF without regeneration; 2 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / ? & 22 & 90 Volt
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 83 - Amrad Corporation; Medford
  • Shape
  • Console with any shape - in general
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
  • Mentioned in
  • Rider's 1-4
