• Year
  • 1926
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 32649
    • alternative name: American Radio & Research

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF without regeneration; 2 AF stage(s); Neutrodyne
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 6 & 16-45 & 90 & -? Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic.
  • Material

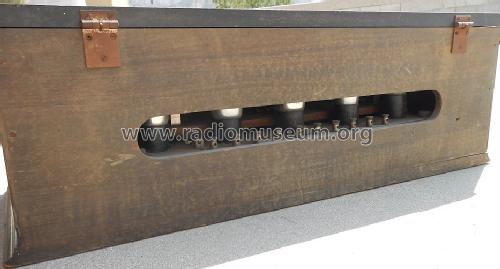

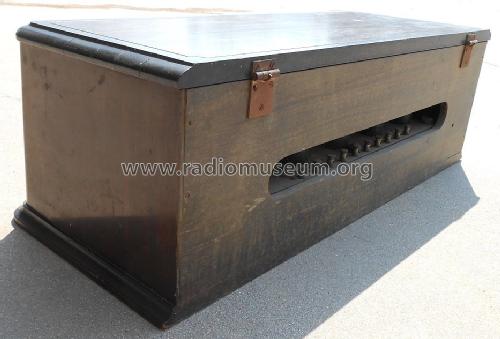

  • Wooden case
  • from Radiomuseum.org
  • Model: S522C - Amrad Corporation; Medford
  • Shape
  • Console with any shape - in general
  • Notes

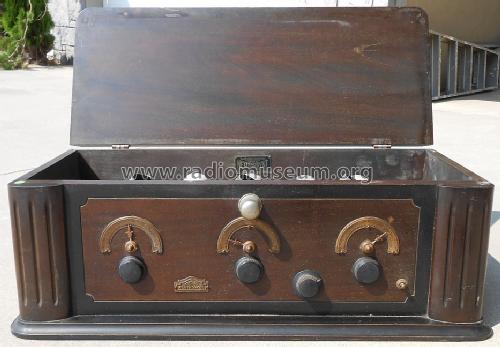

  • Three dials (primary tuning control knobs)

    By 1927 it could have a UX112A with half of the cathode current than the UX112, but not before.

  • Price in first year of sale
  • 90.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
