Short Wave Tuner 2596
Amrad Corporation; Medford Hillside (MA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Amrad Corporation; Medford Hillside (MA)
- Year
- 1922/1923
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 183340
-
- alternative name: American Radio & Research
RAdio Age April 1979 Page 1
Radio Age April 1979 Page 2

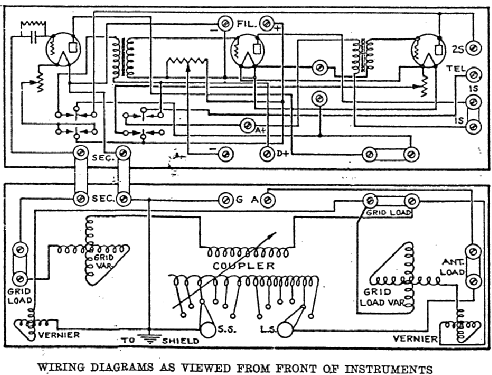

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- RF-Circuit or wave trap (separate, can also be an antenna with amp.)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Short Wave Tuner 2596 - Amrad Corporation; Medford
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 10 x 5 x 6 inch / 254 x 127 x 152 mm
- Notes
- Introduced in October 1922 the AMRAD 2596 Short Wave Tuner was designed as a companion to the 2634 Detector 2-Stage Amplifier.
- Price in first year of sale
- 45.00 $
- Mentioned in
- Radio Manufacturers of the 1920s, Vol 1 (Page 44)
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
