Handy Sound HS; Amroh NV Radio (ID = 184404) R-Player

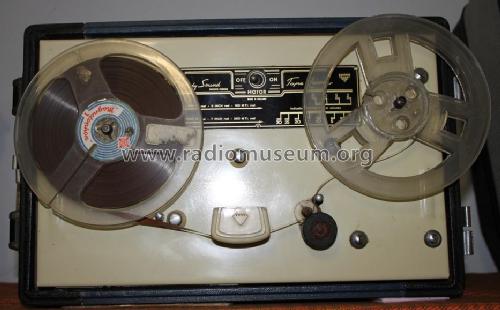

Amroh NV Radio: Handy Sound HS [R-Player] ID = 184404 640x307
Select picture or schematic to display from thumbnails on the right and click for download.
For model Handy Sound HS, Amroh NV (Radio Bulletin monthly), Muiden

Country:  Netherlands
Manufacturer / Brand:  Amroh NV (Radio Bulletin monthly), Muiden
Year: 1953–1957 Category: Sound/Video Recorder and/or Player
Valves / Tubes 2: EF40 ECC81
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Handy Sound HS - Amroh NV Radio Bulletin
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 350 x 160 x 230 mm / 13.8 x 6.3 x 9.1 inch
Notes Early tape recorder 19 cm/s, bias 37.65 kHz, DC erase, frequency range up to 10 kHz, combined Amroh record-play-erase head, 1 AC motor.
Net weight (2.2 lb = 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
Price in first year of sale 298.00 Dfl
Literature/Schematics (1) -- Original-techn. papers.

Model page created by John Hupse † 28.9.20. See "Data change" for further contributors.
