• Year
  • 1963 ??
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 119746

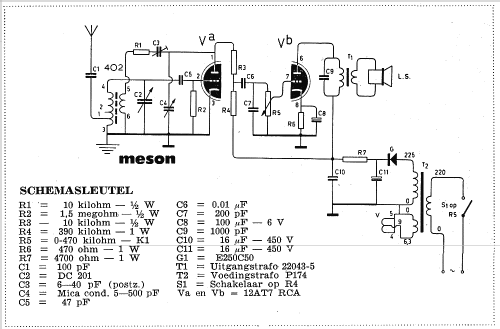

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Main principle
  • TRF with regeneration; 1 AF stage(s); Reaction
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Meson - Amroh NV Radio Bulletin
  • Shape
  • Chassis only or for «building in»
  • Source of data
  • - - Manufacturers Literature
  • Mentioned in
  • - - Data from my own collection (Ing. M.van Geelkerken, Jongens Radio, Bussum: De Muiderkring 1971, pag.37-43.)
  • Literature/Schematics (1)
  • Amroh Katalog 1963
  • Author
  • Model page created by Aren van Waarde. See "Data change" for further contributors.
