6010

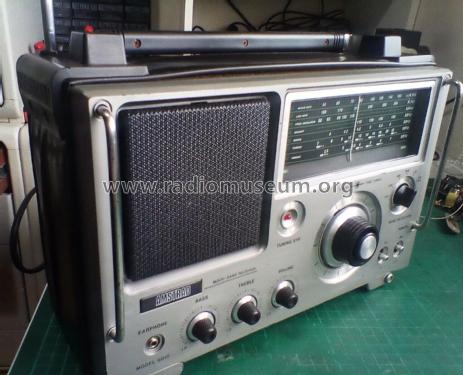

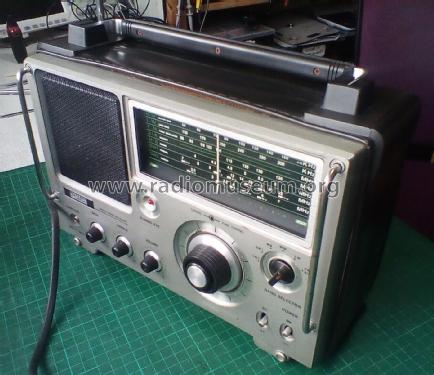

6010; Amstrad, London (ID = 1132514) Radio 6010; Amstrad, London (ID = 1132519) Radio
6010; Amstrad, London (ID = 1132520) Radio 6010; Amstrad, London (ID = 1132521) Radio
Use red slider bar for more.
6010; Amstrad, London (ID = 1132514) Radio
Amstrad, London: 6010 [Radio] ID = 1132514 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6010, Amstrad, London

Country:  Great Britain (UK)
Manufacturer / Brand:  Amstrad, London
Year: 1979 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 19:
Main principle Superheterodyne (common); ZF/IF 465/10700 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / ? Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: 6010 - Amstrad, London
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Marine Band (4-6 MHz), S.W. (7-23MHz), C.B. (27.56 - 28.1 MHz).
Source of data - - Data from my own collection

Model page created by Rolando Silva. See "Data change" for further contributors.



All listed radios etc. from Amstrad, London
Here you find 31 models, 24 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
