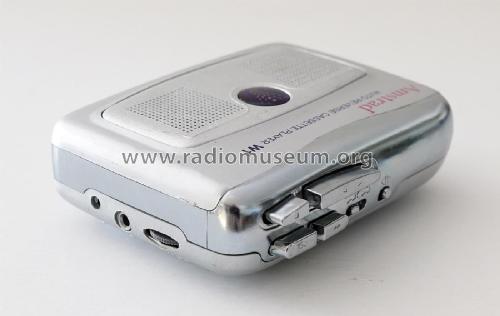

Amstrad, London: Auto Reverse Cassette Player W1 [R-Player] ID = 2067820 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1990 ?? | Category: Sound/Video Recorder and/or Player | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Audio-Amplification |
|---|---|
| Wave bands | - without |
| Details | Cassette-Recorder or -Player |
| Power type and voltage | Batteries / addl. power jack / 2 x 1,5 / 3 Volt |
| Loudspeaker | 2 Loudspeakers / Ø 3 cm = 1.2 inch |
| Power out | 0.1 W (unknown quality) |
| from Radiomuseum.org | Model: Auto Reverse Cassette Player W1 - Amstrad, London |
| Material | Modern plastics (no Bakelite or Catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 110 x 87 x 27 mm / 4.3 x 3.4 x 1.1 inch |
| Notes | AMSTRAD Auto Reverse Cassette Player mod. W1 Tasti play/rew/ff.ww/stop - commutatore reverse - commutatore audizione normale/continua - controllo volume - staffa trasporto - uscita cuffia - uscita alimentazione esterna. |
| Net weight (2.2 lb = 1 kg) | 0.310 kg / 0 lb 10.9 oz (0.683 lb) |
Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
