174-GT

174-GT; Anglo Española de (ID = 631073) Radio

174-GT; Anglo Española de (ID = 631075) Radio
174-GT; Anglo Española de (ID = 1094769) Radio 174-GT; Anglo Española de (ID = 1094770) Radio
Use red slider bar for more.
174-GT; Anglo Española de (ID = 1094769) Radio

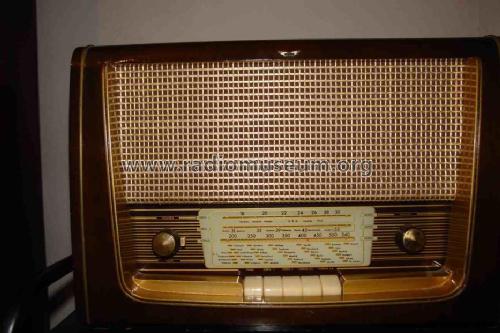

Anglo Española de: 174-GT [Radio] ID = 1094769 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model 174-GT, Anglo Española de Electricidad S.A. (AEESA)

Country:  Spain
Manufacturer / Brand:  Anglo Española de Electricidad S.A. (AEESA)
alternative name

Sdad. Anglo Esp. de El. || Sociedad Anglo
Brand
AEESA
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DF97
Semiconductors (the count is only for transistors) 3: OC72 OC72 OC76
Main principle Superheterodyne (common); ZF/IF 472,5 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 174-GT - Anglo Española de Electricidad
Notes 2 transistores OC72 push-pull clase B para salida de potencia y 1 transistor OC76 como oscilador para generar la alta tension.
Source of data -- Original-techn. papers.

Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
