- Country
- Spain
- Manufacturer / Brand
- Anglo Española de Electricidad (AEESA); Barcelona
- Year
- 1949 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 163981
-
- alternative name: Sdad. Anglo Esp. de El. || Sociedad Anglo
- Brand: AEESA
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110/125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
- Material
- Wooden case
- from Radiomuseum.org

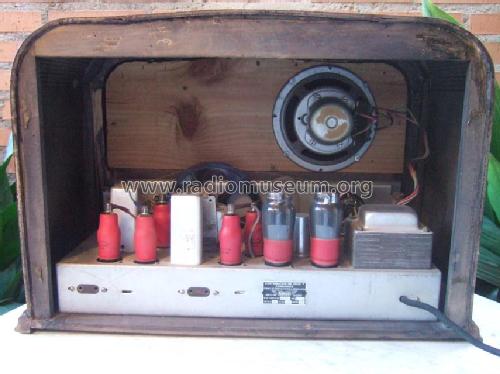

- Model: 671G - Anglo Española de Electricidad
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 560 x 390 x 270 mm / 22 x 15.4 x 10.6 inch
- Notes
- ES curioso el montage ya que depues de la parte triodo de la detestora EBC3 intercalan una EF9 como preamplificadora de BF "driver"antes de atacar el (push-pull) de las dos EL3N.
- Author
- Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
