- Country
- United States of America (USA)
- Manufacturer / Brand
- Ansley, Arthur, Mfg. Co; Doylestown (PA)
- Year
- 1949
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 128115
SAMS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: SP-1 - Ansley, Arthur, Mfg. Co;
- Shape
- Tablemodel, with any shape - general.
- Notes
- The Models SP-1 is an AC operated 2 channel Audio Amplifier with Phono Player. The correct phono cartridge is Astatic LP-78.
- Literature/Schematics (1)

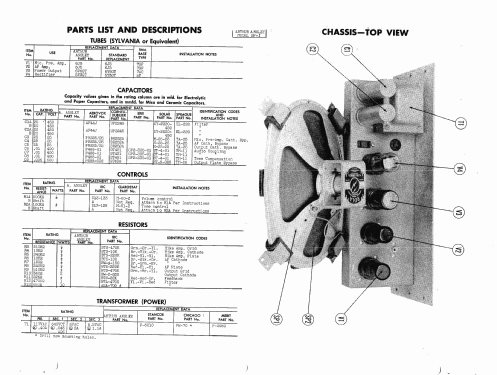

- Photofact Folder, Howard W. SAMS (Date 4-49 (489-4), set 60, folder 4)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
