Commodore
Anson, Henry, Ltd.; Brentford Middlesex
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Anson, Henry, Ltd.; Brentford Middlesex
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 225469
Wireless World December 1936
Wireless World December 1936
Wireless World December 1936
Wireless World December 1936
- Number of Tubes
- 16
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record-Changer, both sides!
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Commodore - Anson, Henry, Ltd.; Brentford

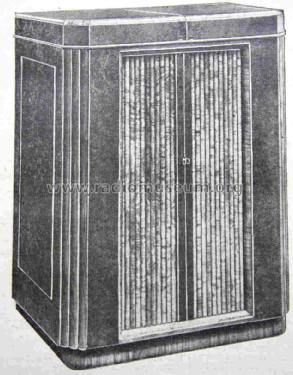

- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 34 x 46 x 26 inch / 864 x 1168 x 660 mm
- Notes
-
Remote controlled double-sided record player for 33 records giving 5.5 hours of playing from a single loading.

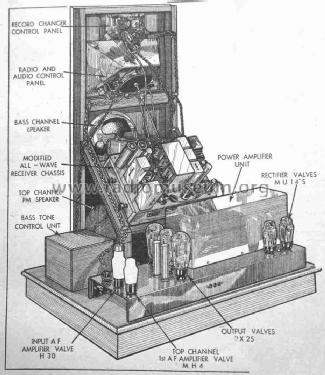

The audio output uses a pair of PX25 for the two main speakers and a separate PX25 circuit to a separate treble speaker.
- Net weight (2.2 lb = 1 kg)
- 112 lb (112 lb 0 oz) / 50.848 kg
- Price in first year of sale
- 173.00 GBP
- Source of data
- Wireless World (The), London (WW, 79)
- Author
- Model page created by Roy Johnson. See "Data change" for further contributors.
