Portable MKII (2)

Antone Ltd.; Auckland

Data
Forum
Pictures
Collections

  • Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 364025

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superhet with RF-stage; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

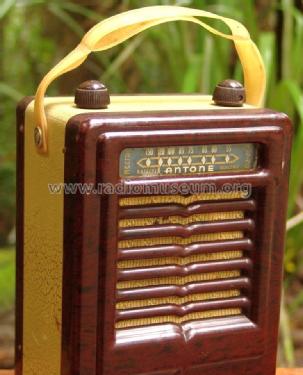

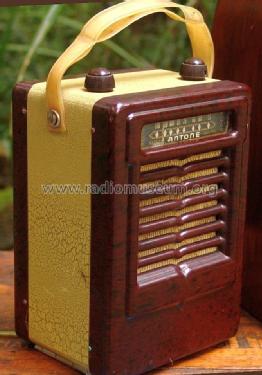

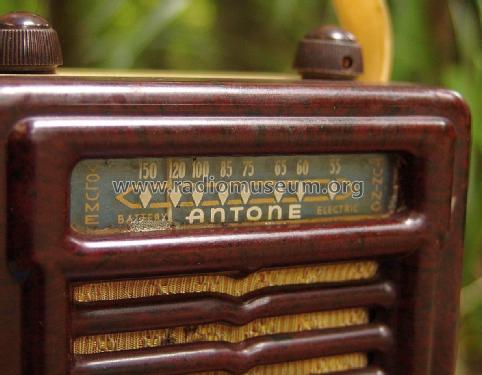

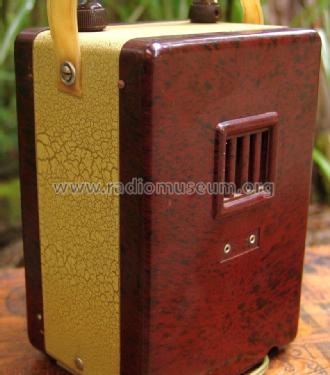

  • Model: Portable MKII - Antone Ltd.; Auckland
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Antone Portable MKII

    • 5-valve Broadcast chassis
    • Interchangeable Battery and Power Packs
    • Light weight
    • Smart ultra modern cabinet
    • Sensational low price £19/19/-. Batteries £1/3/6 extra

    See also Antone Portable MK1.

  • Price in first year of sale
  • 19.95 NZ £
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
