For model VXL357, Apelco Co.; San Francisco

Country:  United States of America (USA)
Manufacturer / Brand:  Apelco Co.; San Francisco
Year: 1987 ? Category: Commercial Transmitter & Receiver (TRX not Amateur)
Valves / Tubes -1
Main principle PLL, Phase-locked loop
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Batteries / addl. power jack / 9.6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: VXL357 - Apelco Co.; San Francisco
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 159 x 65 x 450 mm / 6.3 x 2.6 x 17.7 inch
Notes

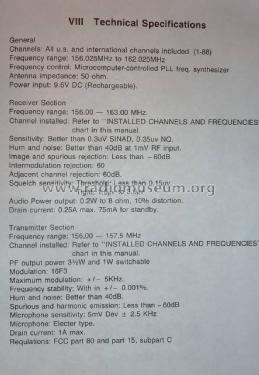

Marine Transceiver. Receiver 156-163 MHz. Transmitter 156-157.5 MHz.

RF output power 3-1/2 and 1 Watt switchable.
Operates on 91 channels. Both U.S. and international modes.
Receive only 8 channels for weather.

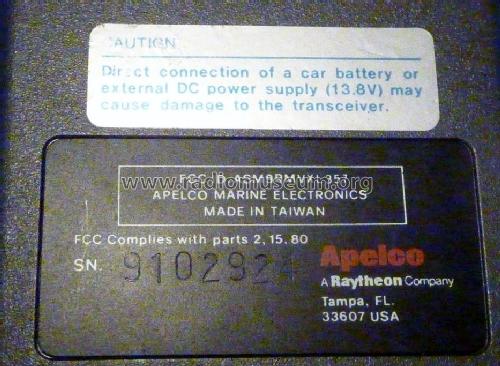

Made in Taiwan

Model page created by Ciro Guidi. See "Data change" for further contributors.
