Plain Talk Microphone 590-0670

Plain Talk Microphone 590-0670; Apple Computer ; (ID = 2311086) Microphone/PU Plain Talk Microphone 590-0670; Apple Computer ; (ID = 2311087) Microphone/PU
Plain Talk Microphone 590-0670; Apple Computer ; (ID = 2311090) Microphone/PU Plain Talk Microphone 590-0670; Apple Computer ; (ID = 2311089) Microphone/PU
Plain Talk Microphone 590-0670; Apple Computer ; (ID = 2311091) Microphone/PU Plain Talk Microphone 590-0670; Apple Computer ; (ID = 2311092) Microphone/PU
Plain Talk Microphone 590-0670; Apple Computer ; (ID = 2311093) Microphone/PU
Use red slider bar for more.
Plain Talk Microphone 590-0670; Apple Computer ; (ID = 2311086) Microphone/PU
Apple Computer ;: Plain Talk Microphone 590-0670 [Microphone/PU] ID = 2311086 1400x1063
Select picture or schematic to display from thumbnails on the right and click for download.
For model Plain Talk Microphone 590-0670, Apple Computer ; Cupertino, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Apple Computer ; Cupertino, USA
Year: 1994 ?? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage Direct Current supply (DC) / 5 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Plain Talk Microphone 590-0670 - Apple Computer ; Cupertino,
Material Plastics (no bakelite or catalin)
Dimensions (WHD) 50 x 25 x 60 mm / 2 x 1 x 2.4 inch
Notes

Compatible with desktop Apple PowerMacs including G3 iMacs, but not with G4 flat screen iMacs or with G5 or later Macintosh models.

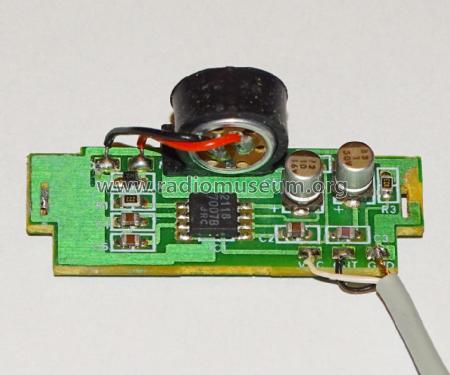

The Plain Talk microphone incorporates a JRC 2118 amplifier IC that is powered by the voltage picked up by the extended tip of its proprietary 3.5 mm jack plug, which is longer than a standard one.

When powered in this way, the microphone produces a line-level output for a Macintosh computer line-level audio input. (Which is often labelled somewhat misleadingly with a microphone icon). Note that many later Macintoshes have a standard audio input jack socket instead of the special powered one, although they still require a line-level input and will produce very weak sounds if used with a microphone without an amplifier.

Contrary to some reports the microphone is mono, not stereo.
Adhesive pad for attaching the microphone to support such as a display monitor.
Supplied with a 2m40 (7' 10") cable. The part No. is embossed on the jack plug, not the microphone.

Net weight (2.2 lb = 1 kg) 0.450 kg / 0 lb 15.9 oz (0.991 lb)

Model page created by Bruce Taylor. See "Data change" for further contributors.
