Pretty 2

Pretty 2 ; Arc-en-Ciel; where? (ID = 2263656) Radio Pretty 2 ; Arc-en-Ciel; where? (ID = 2263657) Radio
Use red slider bar for more.
Pretty 2 ; Arc-en-Ciel; where? (ID = 2263656) Radio

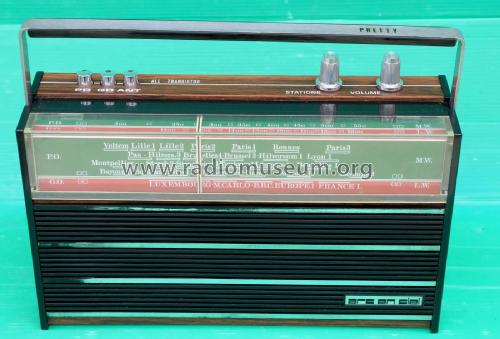

Arc-en-Ciel; where?: Pretty 2 [Radio] ID = 2263656 1400x950
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pretty 2, Arc-en-Ciel; (where? où?)

Country:  France
Manufacturer / Brand:  Arc-en-Ciel; (where? où?)
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF126 AF126 AF126 BC109B AC187 AC188
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Pretty 2 - Arc-en-Ciel; where? où?
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 165 x 77 mm / 10.8 x 6.5 x 3 inch
Notes

Double cadran. Commutation antenne-cadre.

Équivalent au Premio Pretty P490.
Voir aussi modèle similaire (ou identique) Acec 5064.

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)

Model page created by Jean-Louis Buton. See "Data change" for further contributors.



All listed radios etc. from Arc-en-Ciel; (where? où?)
Here you find 4 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
