• Country
• France

• Manufacturer / Brand
• Arco Jicky, Le Matériel Radioélectrique, CFR (C.F.R., Compagnie Française de Radio); Paris

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134183

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6E8 6H8 6V6 5Y3 6AF7

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

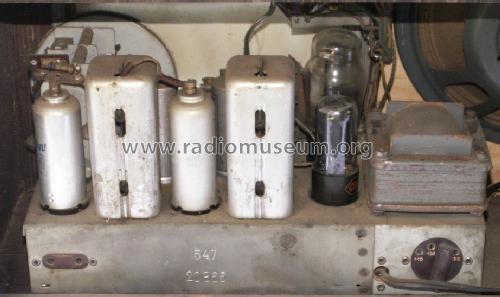

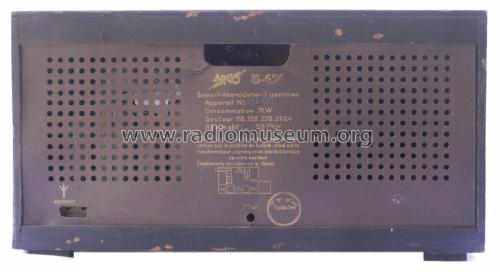

• Model: 547 - Arco Jicky, Le Matériel

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 220 x 300 mm / 21.7 x 8.7 x 11.8 inch

• Notes
• The "magic eye" 6AF7 is used as audio preamplifier . No galvanic insulation , the primary of the transformer feeds the 5Y3 .

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 4360)

• Author
• Model page created by Serge Laffont. See "Data change" for further contributors.
