- Country
- France
- Manufacturer / Brand
- Arco Jicky, Le Matériel Radioélectrique, CFR (C.F.R., Compagnie Française de Radio); Paris
- Year
- 1957–1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 237889

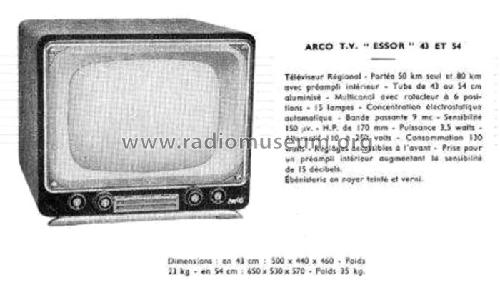

Dépliant 1957/58
Dépliant 1957/58
- Number of Tubes
- 16
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Essor [Écran 54 cm] - Arco Jicky, Le Matériel
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 650 x 530 x 570 mm / 25.6 x 20.9 x 22.4 inch
- Notes
-
Téléviseur régional. 15 lampes. Tube aluminisé, concentration électrostatique automatique. Multicanal avec rotacteur à 6 positions. Bande passante 9 mc.
Prise pour un préampli intérieur.
Ébénisterie en noyer teinté et verni.
- Net weight (2.2 lb = 1 kg)
- 35 kg / 77 lb 1.5 oz (77.093 lb)
- Price in first year of sale
- 151,500.00 FRF
- Mentioned in
- -- Original prospect or advert (B. Dumontier, Tarif 1959/60)
- Literature/Schematics (1)
- -- Original prospect or advert (Dépliant 1957/58)
