R34
Use red slider bar for more.

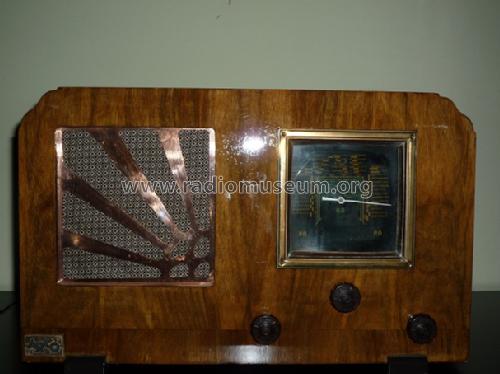

Arco Jicky, Le: R34 [Radio] ID = 1573004 607x455
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1936 | Category: Broadcast Receiver - or past WW2 Tuner | ||||

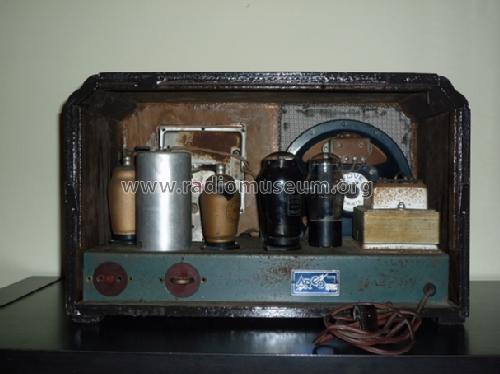

| Valves / Tubes | 4: AK2 AF3 AL4 80 |
|---|
| Main principle | TRF (Tuned-Radio-Frequency but use of regeneration unknown) |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 130; 220; 240 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch |
| Power out | |
| from Radiomuseum.org | Model: R34 - Arco Jicky, Le Matériel |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 390 x 245 x 310 mm / 15.4 x 9.6 x 12.2 inch |
| Notes | Serie "R". "Amplification directe 4 lampes". |
| Price in first year of sale | 550.00 FRF |
| Mentioned in | Publicité pour Salon 1936 |
Model page created by Mark Hippenstiel. See "Data change" for further contributors.
