Sound AM/FM Design Radio ; Arco, EU where (ID = 1951584) Radio
Arco, EU where: Sound AM/FM Design Radio [Radio] ID = 1951584 777x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sound AM/FM Design Radio, Arco, EU (where)

Country:  Europe
Manufacturer / Brand:  Arco, EU (where)
Year: 1995 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Sound AM/FM Design Radio - Arco, EU where
Material Modern plastics (no Bakelite or Catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 195 x 210 x 88 mm / 7.7 x 8.3 x 3.5 inch
Notes

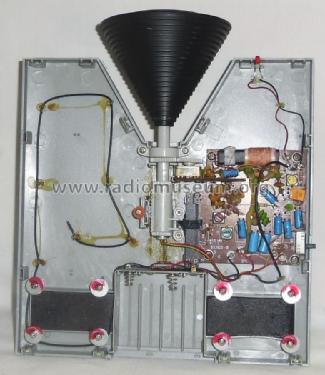

AM/FM Design Radio mit Abstimmung, Lautstärkeregler und roter Betriebs-LED oben und Bereichwahlschalter/Ein/Aus rechts. Interne Draht-UKW- und separate Ferritantenne.

Die Lautstärkeregelung erfolgt durch lineares Ausziehen des kombinierten Lautsprechers / Abstimmknopfes, die Abstimmung durch Drehen des Selben.

Empfangsbereiche:
FM: 87,5 - 108MHz,
AM: 530 - 1620kHz.

Net weight (2.2 lb = 1 kg) 0.666 kg / 1 lb 7.5 oz (1.467 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
