Transistor 3 lampes

Transistor ; Arel, Applications (ID = 1864955) Car Radio Transistor ; Arel, Applications (ID = 1864956) Car Radio
Transistor ; Arel, Applications (ID = 1864957) Car Radio Transistor ; Arel, Applications (ID = 1864958) Car Radio
Transistor ; Arel, Applications (ID = 1864959) Car Radio Transistor ; Arel, Applications (ID = 1864960) Car Radio
Transistor ; Arel, Applications (ID = 1864961) Car Radio Transistor ; Arel, Applications (ID = 1864962) Car Radio
Transistor ; Arel, Applications (ID = 2073611) Car Radio
Use red slider bar for more.
Transistor ; Arel, Applications (ID = 1864955) Car Radio
Arel, Applications: Transistor [Car Radio] ID = 1864955 1183x509
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor 3 lampes, Arel, Applications Radio-Électriques (CSF); Courbevoie, Levallois:

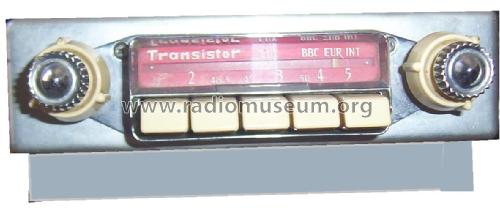

Vista frontale

Country:  France
Manufacturer / Brand:  Arel, Applications Radio-Électriques (CSF); Courbevoie, Levallois
Year: 1960 ? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 3: ECH83 ECH83 EBF83
Semiconductors (the count is only for transistors) 5: SFT123 SFT124 SFT213 SFT213 unknown_tr
Main principle Superhet with RF-stage; ZF/IF 480 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Transistor [3 lampes] - Arel, Applications Radio-
Material Metal case
Shape Chassis only or for «building in»
Notes

Récepteur à trois gammes d'ondes: PO, GO et OC. Clavier 5 touches dont deux stations préréglées GO, deux PO et une OC, effectuant la commutation automatique des gammes.

Voir aussi modèle Transistor avec 4 lampes et un seul transistor de sortie 4 W.


Alimentabile sia a 6 sia a 12 volt con negativo a massa. Quando alimentato a 6 volt entra in funzione un elevatore da 6 a 12 volt a transistore, che genera la tensione anodica per le valvole (12 volt).

Model page created by Salvatore Baldi † 2017. See "Data change" for further contributors.



All listed radios etc. from Arel, Applications Radio-Électriques (CSF); Courbevoie, Levallois
Here you find 19 models, 15 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
