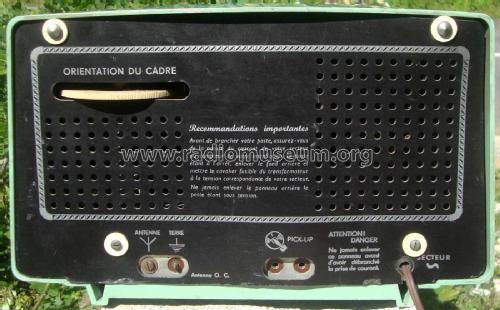

Dauphin CL59

Dauphin CL59; Areso voir aussi Ast (ID = 1861197) Radio Dauphin CL59; Areso voir aussi Ast (ID = 1861198) Radio
Dauphin CL59; Areso voir aussi Ast (ID = 1861199) Radio Dauphin CL59; Areso voir aussi Ast (ID = 1564248) Radio
Dauphin CL59; Areso voir aussi Ast (ID = 1564200) Radio
Use red slider bar for more.
Dauphin CL59; Areso voir aussi Ast (ID = 1861197) Radio
Areso voir aussi Ast: Dauphin CL59 [Radio] ID = 1861197 1400x968
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dauphin CL59, Areso (voir aussi Astérion); Saint-Ouen, La Plaine-Saint-Denis:
ebay.fr #141670679072 seller tsf-pour-tous

Country:  France
Manufacturer / Brand:  Areso (voir aussi Astérion); Saint-Ouen, La Plaine-Saint-Denis
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF80 ECL82 EZ80 EM81
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Dauphin CL59 - Areso voir aussi Astérion;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 325 x 212 x 166 mm / 12.8 x 8.3 x 6.5 inch
Notes

4 gammes d'ondes: PO, GO, OC et BE. Clavier 5 touches. Ferrocapteur PO-GO actioné par roue moletée à l'arrière.

Ébénisterie polystyrène bordeaux, vert ou ivoire.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Mentioned in -- Original prospect or advert

Model page created by Mark Hippenstiel. See "Data change" for further contributors.



All listed radios etc. from Areso (voir aussi Astérion); Saint-Ouen, La Plaine-Saint-Denis
Here you find 72 models, 58 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
