• Country
• France

• Manufacturer / Brand
• Ariane; Paris

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62592

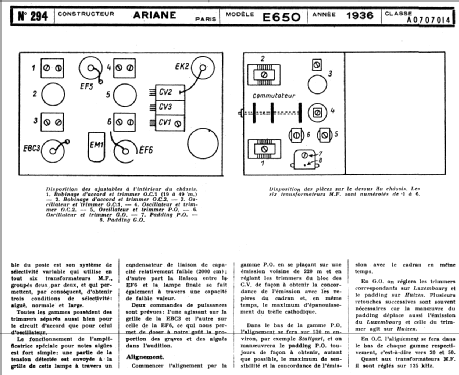

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EK2 EF5 EBC3 EF6 EM1 EL3 EZ3

• Main principle
• Superheterodyne (common); ZF/IF 125 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

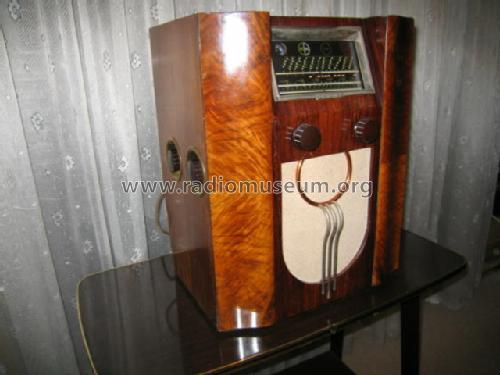

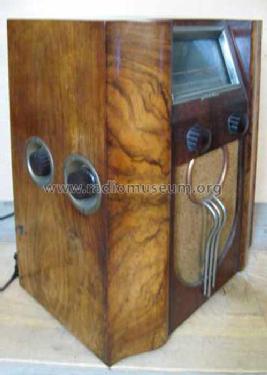

• Model: E650 - Ariane; Paris

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Notes

• 4 gammes d'ondes dont 2 OC: 19 - 49 m et 43 - 145 m. Sélectivité variable.

  Existe aussi en exécution Luxe, avec différences inconnus.

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 118 - Luxe: 8118)

• Literature/Schematics (2)
• Schémathèque Toute la Radio (STR) (No. 294)

• Other Models

• Here you find 115 models, 95 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Ariane; Paris
